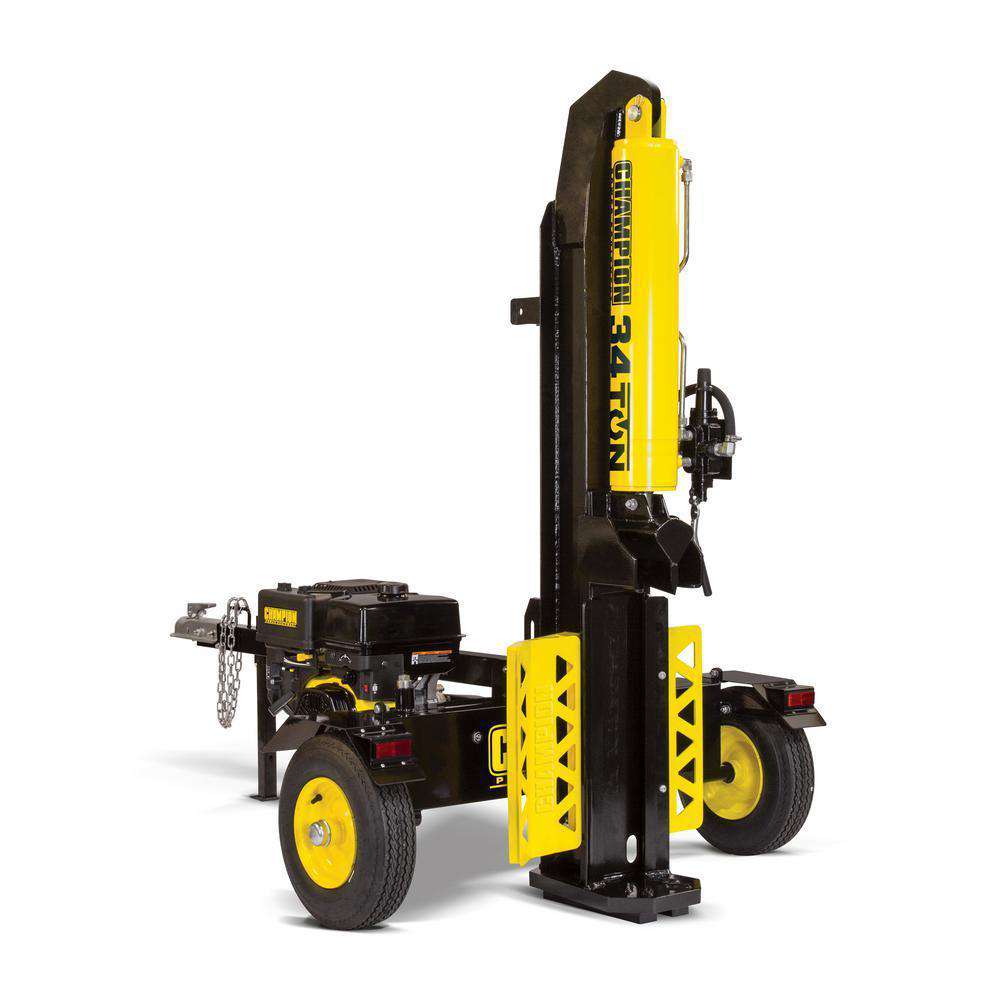

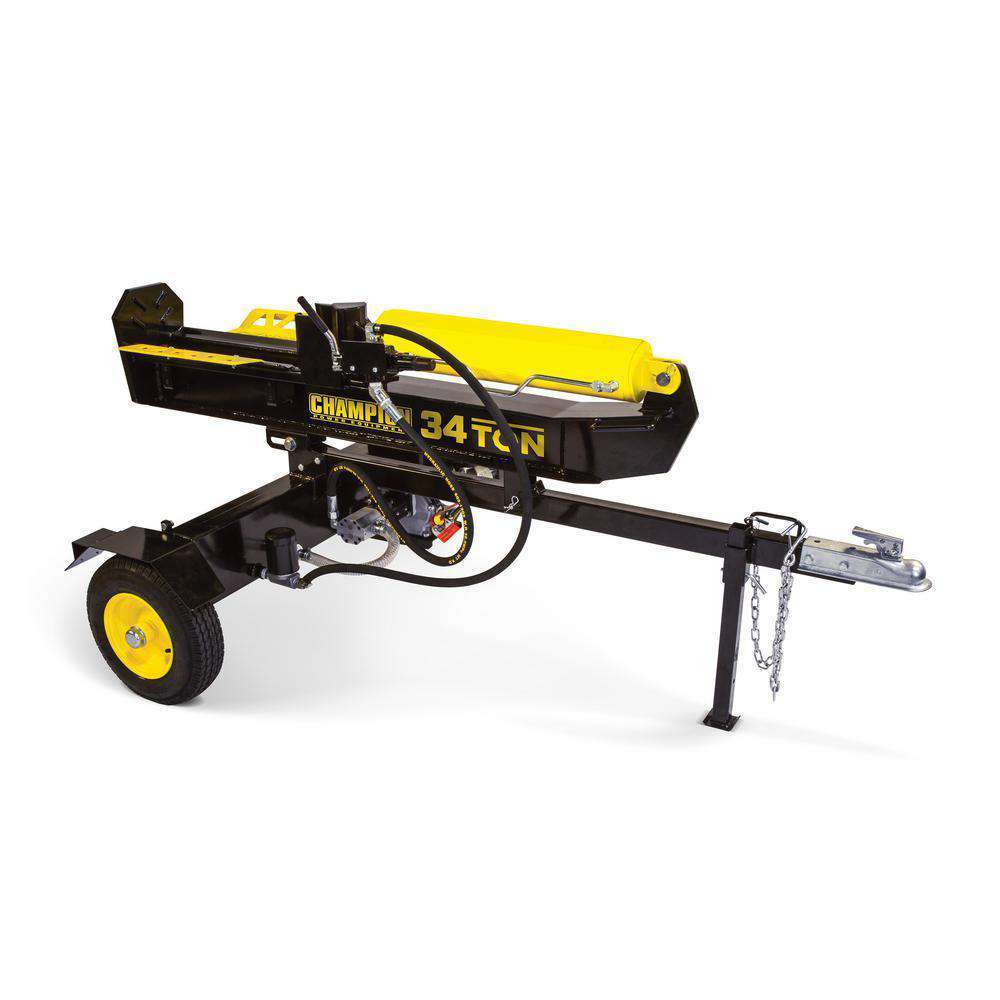

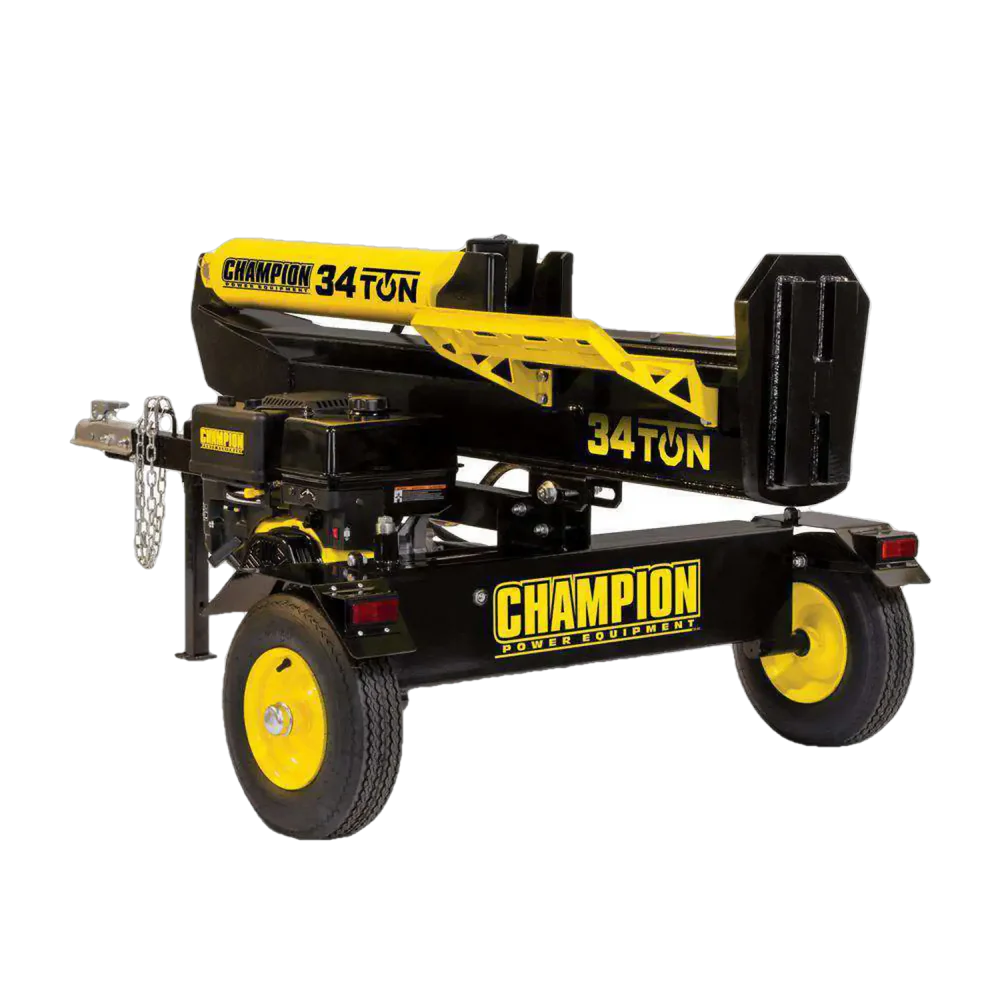

Champion 100425 34-Ton 338cc Gas Log Splitter, Horizontal/Vertical

# Champion 100425 34-Ton Gas-Powered Log Splitter

The Champion 100425 34-Ton Gas Log Splitter is designed for demanding firewood processing, residential use, and property maintenance. Powered by a 338cc 4-stroke OHV gasoline engine, this heavy-duty hydraulic log splitter delivers 34 tons of splitting force to handle tough logs efficiently. Its durable full-beam design accommodates logs up to 24 inches long, making it a practical choice for homeowners, landowners, and anyone preparing firewood for the colder months.

## Powerful Performance and Efficient Log Splitting

Equipped with a two-stage hydraulic gear pump delivering up to 13 GPM of flow and a maximum pressure of 3,600 PSI, the Champion 100425 provides reliable hydraulic performance with an approximately 16-second cycle time. Its horizontal and vertical splitting positions offer greater flexibility when working with different log sizes and heavier wood rounds.

The 338cc single-cylinder engine features a manual recoil starting system and low-oil shutoff for added operating protection. With a 1.6-gallon fuel capacity and a robust hydraulic system, this gas-powered log splitter is built for demanding firewood preparation tasks.

## Convenient Design and Transport

Designed for practical operation, this 34-ton hydraulic log splitter includes integrated log catchers to help support split wood and an automatic return detent valve to streamline repeated splitting cycles. The 16-inch DOT-approved tires and 2-inch ball hitch coupler make it convenient to transport between suitable work locations when properly connected to a compatible towing vehicle.

Whether you're looking for a 34-ton gas log splitter, a heavy-duty hydraulic wood splitter, or a Champion log splitter for firewood preparation, the Champion 100425 combines powerful splitting performance, versatile operation, and convenient transport features.

## Key Features

- **34-Ton Splitting Force:** Powerful hydraulic performance for demanding firewood processing.
- **338cc OHV Gas Engine:** Four-stroke, single-cylinder gasoline engine.
- **Horizontal and Vertical Operation:** Provides flexibility when splitting different sizes of logs.
- **Approximately 16-Second Cycle Time:** Designed for efficient repeated splitting.
- **Two-Stage Hydraulic Pump:** Up to 13 GPM maximum flow and 3,600 PSI maximum pressure.
- **Integrated Log Catchers:** Help support logs during splitting operations.
- **Automatic Return Detent Valve:** Simplifies the return phase of the splitting cycle.
- **Recoil Start System:** Manual starting with low-oil shutoff.
- **Towable Design:** Features 16-inch DOT-approved tires and a 2-inch ball hitch coupler.

## Technical Specifications

**General Information**
- Brand: Champion Power Equipment
- Model: 100425
- SKU: CHM-100425-34T-NEW
- Product Type: Gas-Powered Hydraulic Log Splitter
- Splitting Force: 34 tons

**Engine and Fuel System**
- Engine Displacement: 338cc
- Engine Type: 4-stroke, single-cylinder OHV
- Starting System: Manual recoil
- Engine Protection: Low-oil shutoff
- Fuel Capacity: 1.6 gallons / 6.2 liters

**Hydraulic System**
- Pump Type: Two-stage hydraulic gear pump
- Maximum Flow Rate: 13 GPM
- Maximum Hydraulic Pressure: 3,600 PSI
- Approximate Cycle Time: 16 seconds
- Total Hydraulic System Capacity: 6.8 gallons
- Hydraulic Tank Capacity: 5 gallons

**Log Capacity and Operation**
- Maximum Log Length: 24 inches / 61 cm
- Maximum Log Weight: 100 lb / 45 kg
- Operating Positions: Horizontal and vertical

**Transport and Dimensions**
- Tire Size: 16 inches, DOT-approved
- Maximum Specified Towing Speed: 45 MPH
- Hitch Coupler: 2-inch ball
- Net Weight: 566.6 lb / 257 kg
- Dimensions: 89.5 in L x 51.3 in W x 40.6 in H

## Safety and Maintenance

Review the manufacturer's instructions before assembly, operation, towing, maintenance, or storage. Operate the log splitter on stable ground, keep bystanders clear of the work area, and wear suitable protective equipment, including safety glasses, hearing protection, gloves, and sturdy footwear. Follow the manufacturer's towing requirements and never exceed applicable speed or load limits.

Choose the Champion 100425 34-Ton Gas Log Splitter for powerful hydraulic wood splitting and dependable performance during demanding firewood preparation projects.
